Agent can serve production traffic without being rewritten.
What sets it apart:
- Production backbone for live agents — agent runs, background tasks, schedules, and the tool/MCP/skill/workspace lifecycle are managed end-to-end, with session streams that fan out to multiple subscribers and replay buffered history on reconnect.
- Schema-driven frontend — credentials publish JSON schemas and models expose declarative cards (input/output types, context size, parameter schemas), so the UI can render forms and capability badges without coupling to provider-specific code.
- Multi-tenant by construction — credentials, agents, sessions, schedules, and messages are all owned by the request’s
user_id, and ownership is enforced at the routing layer — one deployment serves many users with no per-tenant code paths. - Modular and extensible — authentication, chat protocols, workspace isolation strategy, storage backend, and the set of model providers and credential types are all open at the boundary, swappable without touching framework code.
Capabilities
| Capability | Description |
|---|---|
| Agent teams | A leader agent spawns worker agents and coordinates them through built-in team tools; see the Agent Team chapter. |
| Workspace management | Pluggable workspace isolation (built-in: per-agent; extensible to per-session or per-user) for the agent’s filesystem, MCP clients, and skills. |
| Background task offloading | Long-running tool calls move to background; their results are delivered back through the session’s event stream when they finish. |
| Cron scheduling | Time-based agent execution with stateful or stateless sessions; schedules persist across restarts. |
| Session replay | Late-joining clients to the per-session SSE stream receive buffered history before live events, so multiple tabs or a reconnecting frontend stay in sync. |
| Protocol adaptation | Middleware-based conversion to external protocols (AG-UI, A2A, etc.) on top of AgentScope’s native event stream. |
| Distributed deployment WIP | All shared state lives in Redis (storage + message bus), so multiple worker processes — or multiple nodes — can serve one logical service. |
The service does not include a built-in user authentication system. It provides a placeholder
X-User-ID header dependency that you replace with your own auth middleware (JWT, OAuth, session tokens, etc.).Quickstart
The fastest way to see Agent Service in action is to run the bundled example backend together with the example frontend — both ship inside the AgentScope repo.Try the bundled example
Theexamples/agent_service directory boots a ready-to-use service, and examples/web_ui is a matching React frontend that talks to it. Together they give you a working playground for every capability above in a few minutes.




Start the example backend
Make sure a local Redis is reachable (the example expects The service comes up on
localhost:6379), then launch the service:http://localhost:8000.- Permission control — tools that touch the system pause for confirmation; explore-mode locks the agent to read-only operations.

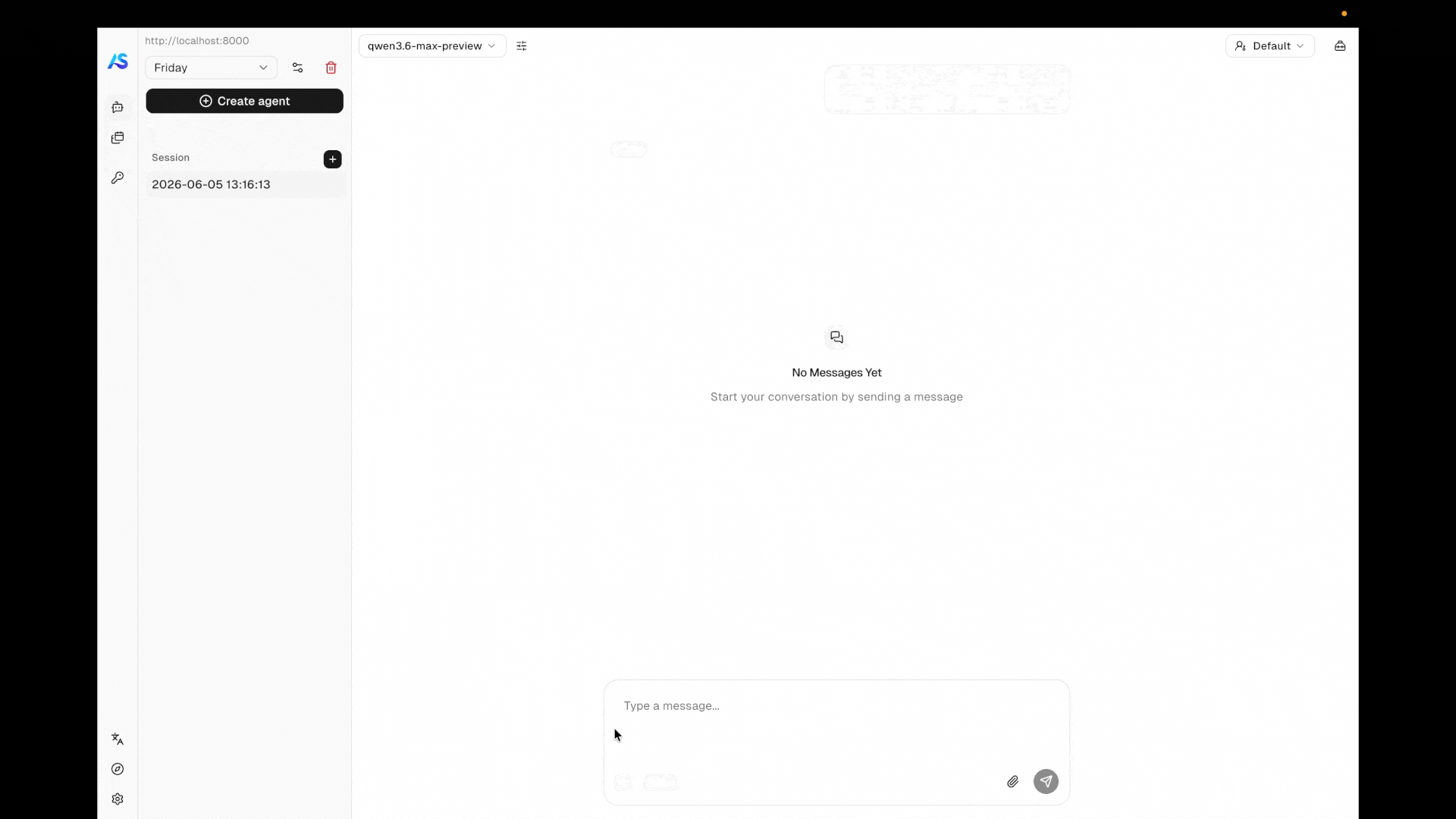

- Background task offloading — long-running tool calls move to the background and their results stream in when they finish, without blocking the conversation.
- Task planning — the agent breaks complex work into a tracked plan and updates it as it goes.
- Agent teams — a leader agent spawns workers and coordinates them through the team tools.
- Scheduled runs — cron-driven agents that fire on their own and report back to the same session stream.
From your own code
When you want to embed the service in your own deployment instead of running the example, build the FastAPI app yourself withcreate_app. The minimum to get a service running is a storage backend, a message bus, and a workspace manager. The examples below boot a service on port 8000 backed by Redis — pick the workspace backend that matches where you want the agent’s tools to execute.
create_app parameters
The storage backend for persisting agents, sessions, credentials, messages, and schedules. Its lifecycle (
__aenter__ / __aexit__) is managed by the app lifespan.Redis-backed primitives — session locks, replay logs, inbox queues, and wakeup signals — that decouple chat triggering from event delivery. Required because every code path that delivers events to the frontend (
POST /chat, scheduled fires, team messages, background-tool completions) goes through it, and because it is what makes multi-process deployments possible.Manages workspaces (file storage, MCP servers, skills) with TTL-based caching. The built-in
LocalWorkspaceManager isolates per agent; see Workspace implementation and isolation for other strategies.Additional credential types to register. Each class is registered with
CredentialFactory before the app starts.Additional ASGI middlewares (e.g., protocol adapters, CORS, auth).
Async factory
(user_id, agent_id, session_id) -> Awaitable[list[MiddlewareBase]] invoked once per agent assembly (per chat turn or scheduled trigger). Returned middlewares are appended to the framework-supplied ones (e.g., ToolOffloadMiddleware) before the agent runs, so the factory can produce per-user / per-session middlewares such as audit logging, tenant isolation, or custom auth.Async factory
(user_id, agent_id, session_id) -> Awaitable[list[ToolBase]] invoked once per agent assembly. Returned tools are merged into the toolkit’s "basic" group alongside the workspace-derived tools, so tool availability can vary per caller (per-tenant integrations, user-specific credentials).Reusable blueprints for sub-agent creation within teams. Each template defines a sub-agent type (e.g.
"researcher", "coder") with pre-configured system prompt, permission context, and task context. When registered, the AgentCreate tool exposes a subagent_type parameter so the leader agent can route to the appropriate template. See Custom sub-agent types for details.OpenAPI title shown in the docs UI.
API version shown in the docs UI.
Typical operation flow
Once the server is running, drive it through the resources defined in the resource model. The flow below is the path a chat session usually takes — each step is one or two REST calls.Create an agent
Register the agent’s identity — display name, system prompt, and runtime configuration. The same agent can drive many sessions under different models.
Create and configure a credential
Discover each provider’s form fields with
GET /credential/schemas, then save the API key. One credential can be reused across many sessions and agents.Create a session and select a model
Create a session bound to the agent and attach a model configuration — provider, model name, parameters, and the credential to call it with. The session owns the runtime state from here on.
Configure MCPs and skills (optional)
Attach MCP clients and skills to the session’s workspace if the agent needs tools beyond its built-ins. Out of the box, every agent already has access to the workspace’s built-in tools (filesystem, shell, search, …), task-planning tools, schedule and background-task controls, and — when the session is a team leader or member — the team coordination tools described in Agent Team. Anything you pass via
extra_agent_tools in create_app is merged in alongside.Start chatting
Fire a chat run by posting a user
Msg to /chat. The endpoint returns immediately with {"status": "started", "session_id": "..."} — events are delivered out-of-band on the per-session SSE stream GET /sessions/{id}/stream, which any number of clients can subscribe to and which replays buffered history to late joiners before serving live events./chat call is needed; the agent runs autonomously when the cron fires.
Resource Model
Every operation in Agent Service is scoped to auser_id resolved from the request. Below that boundary, the service manages seven resource types — six persisted (left half of the diagram) plus the message bus that ties their runtime behavior together (right half):
| Resource | Description |
|---|---|
| User | Opaque tenant identifier resolved from the request. The service models no user system of its own; you plug yours in via get_current_user_id. |
| Credential | Connection configuration for a model provider — an API key plus provider-specific settings. Reusable across many agents and sessions. |
| Agent | Display name, system prompt, and runtime configuration (context, ReAct loop). The reusable template — identity belongs to the agent, runtime state belongs to the session. |
| Workspace | The agent’s runtime environment — working directory, MCP clients, skills, offloaded context. How workspaces map to users / agents / sessions is decided by the workspace manager. |
| Session | One ongoing exchange between a user and an agent. Carries the agent state (working memory, in-flight reply, permission context), persisted message transcript, and the LLM configuration the session runs under. |
| Schedule | Fires an agent on a cron expression. Each fire runs inside a session — fresh per execution (stateless) or reused so context accumulates (stateful). Schedules persist across restarts. |
| MessageBus | Redis-backed runtime layer — session locks, replay logs, inbox queues, wakeup signals. The single delivery channel for scheduled fires, team messages, and background-tool completions to reach idle sessions; also what makes multi-process operation possible. |
API Overview
The service exposes the resources from the resource model as REST endpoints, plus the streaming chat endpoint. The table below groups them by category; full request and response shapes are documented in the service’s OpenAPI specification.| Category | Endpoints | Description |
|---|---|---|
| Chat | POST /chat | Fire a chat run for a session; returns ChatTriggerResponse JSON. Events are delivered out-of-band on the per-session stream. |
| Session stream | GET /sessions/{id}/stream | Per-session SSE stream of AgentEvent objects, with buffered replay for late joiners and multi-subscriber fan-out. |
| Sessions | GET/POST/PATCH/DELETE /sessions | Create and manage chat sessions, including model binding and permission level. |
| Messages | GET /sessions/{id}/messages | Paginated message transcript for a session. |
| Agents | GET/POST/PATCH/DELETE /agent | Manage agent records — display name, system prompt, runtime config. |
| Credentials | GET/POST/PATCH/DELETE /credential | CRUD for per-provider API keys and connection configs. |
| Credential schemas | GET /credential/schemas | Discover all registered credential types and their JSON parameter schemas for form rendering. |
| Models | GET /model?provider=<name> | List candidate models for a provider, with their declarative ModelCard (capabilities and parameter schemas). |
| Schedules | GET/POST/PATCH/DELETE /schedule, GET /schedule/{id}/sessions | Manage cron-based agent execution, stateful or stateless. |
| Workspace MCPs | GET/POST /workspace/mcp, DELETE /workspace/mcp/{mcp_name} | Manage MCP clients attached to the session’s workspace. |
| Workspace skills | GET/POST /workspace/skill, DELETE /workspace/skill/{skill_name} | Manage skills available in the session’s workspace. |
Customization
The service is open at every infrastructure boundary. The sections below describe what is built in and how to plug in your own.Agent chat protocol
The per-session stream endpoint (GET /sessions/{id}/stream) emits AgentScope’s native AgentEvent stream over SSE. To serve the same agent under a different frontend protocol, install a protocol middleware that intercepts the SSE stream and rewrites each frame.
AgentScope ships with AGUIProtocolMiddleware for the AG-UI protocol. Install it via extra_middlewares:
ProtocolMiddlewareBase and implement _convert_to_protocol:
StreamingResponse objects from the session stream endpoint, deserializes each SSE frame back into an AgentEvent, calls _convert_to_protocol() to produce the target format, and re-serializes the converted frame.
User authentication
The built-inget_current_user_id dependency extracts the caller identity from the X-User-ID request header — a placeholder, not authentication. Override it with your own dependency to integrate any identity system.
JWT bearer token:
Workspace implementation and isolation
Two independent axes are configurable:- Workspace backend — what runtime environment the agent runs in. Built-in implementations include
LocalWorkspace,DockerWorkspace, andE2BWorkspace. New backends implement the workspace interface and can wrap container images, sandboxes, or remote VMs. - Isolation strategy — how workspaces map to users, agents, and sessions. The built-in
LocalWorkspaceManagerkeys workspaces byagent_id: all sessions of the same agent share one workspace. To switch to per-user or per-session isolation, subclassWorkspaceManagerBaseand overrideget_workspacewith your own keying strategy.
API credentials
A new credential type is a pair of classes: aCredentialBase subclass that captures the connection config (and publishes its JSON schema for form rendering), and a ChatModelBase subclass that implements the actual streaming chat protocol against the provider’s API. The credential class is the entry point — it tells the service which chat model class to instantiate.
GET /credential/schemas, and GET /model?provider=<name> routes to the chat model class returned by get_chat_model_class().
Provider models
The model list returned byGET /model?provider=<name> is built from ModelCard instances — declarative metadata records that tell the frontend how to display each model and what request parameters are valid. Each chat model exposes its catalog through list_models(), which by default loads ModelCard entries from YAML files in the provider’s model directory; ModelCard.from_yaml() parses each YAML and merges its overrides into the base parameter schema supplied by the chat model’s parameters class.
A model card carries the following fields:
| Field | Description |
|---|---|
name | Provider-side model identifier. |
label | Display name shown in the UI. |
status | One of active, deprecated, sunset. |
deprecated_at | Deprecation timestamp, if any. |
input_types | MIME types the model accepts (e.g., text/plain, image/png, video/mp4). |
output_types | MIME types the model emits (e.g., text/plain, application/x-thinking). |
context_size | Maximum context window in tokens. |
output_size | Maximum output tokens. |
parameter_schema | JSON schema for the request parameters, auto-merged with per-model overrides. |
parameters_overrides | Per-model deltas applied on top of the base parameter schema. |
qwen3.6-plus.yaml
GET /model?provider=<name>.
Storage backend
TheStorageBase abstract class defines the persistence contract for agents, sessions, credentials, messages, and schedules. AgentScope ships with RedisStorage as the built-in implementation:
| Record | Description |
|---|---|
AgentRecord | Agent configuration (name, system prompt, context config, react config). |
SessionRecord | Session state including AgentState, model config, and workspace binding. |
CredentialRecord | Encrypted model provider API keys. |
ScheduleRecord | Cron schedule definitions with execution history. |
TeamRecord | Team identity, leader binding, and worker member list. |
Msg | Persisted messages per session with pagination support. |
Service Internals
For developers who need to extend or embed the actual implementation of Agent Service in AgentScope, this section describes how the FastAPI app is wired together — what runs at startup, which managers hold runtime state, where middlewares sit in the request path, and how routers get hold of those resources.Lifespan
The lifespan context manager runs once per process. Built withAsyncExitStack, it enters resources in order — storage → message bus → workspace manager → background task manager → scheduler manager → chat service → wakeup dispatcher — and tears them down in reverse on shutdown. If any startup step raises, every previously-entered resource is still cleaned up. The scheduler restores persisted cron jobs on entry so they survive restarts.
Managers
The following resources are bound to the FastAPI app state during the lifespan and shared across all requests:| Resource | Responsibility |
|---|---|
MessageBus | Redis-backed primitives (session locks + replay log, inbox queues, wakeup signals). The single delivery channel for scheduled fires, team messages, and background-tool completions to reach idle sessions; also what enables multi-process operation. |
WakeupDispatcher | One per process. Subscribes to the wakeup signal and, for each enqueued wakeup, drives ChatService.run for the target session. |
BackgroundTaskManager | Pure asyncio task registry. ToolOffloadMiddleware spawns watcher tasks here; results are pushed back through the message bus (inbox + wakeup), not held in this manager. |
SchedulerManager | APScheduler-backed cron execution. On fire, the trigger pushes a HintBlock to the target session’s inbox and enqueues a wakeup — no direct call into ChatService. |
WorkspaceManager | Workspace lifecycle and TTL-based caching; the isolation key (per-agent, per-user, per-session) is decided by the subclass. |
ChatService | Single entry point for running a session. Loads records, assembles the toolkit, builds middlewares, takes the bus session lock, and drives the agent’s reply stream. |
Middlewares
Two distinct middleware layers operate at different scopes. ASGI middlewares wrap every HTTP request. The two categories used in practice are protocol middlewares (e.g.,AGUIProtocolMiddleware), which intercept SSE responses from the session stream endpoint and rewrite each frame into the target protocol, and observability middlewares (e.g., OpenTelemetry tracing). Both install via extra_middlewares.
Agent-level middlewares wrap each call to the agent inside ChatService. They are exposed under agentscope.app.middleware and the framework always installs three:
InboxMiddleware— the sole owner of hint injection. Before each reasoning step it drains the session’s inbox and yields the queuedHintBlocks asHintBlockEvents, so scheduled fires, team messages, and offloaded-tool results all flow into the agent’s context through the same path.ToolOffloadMiddleware— when a tool call exceeds its timeout, the call is moved to a background watcher task and a synthetic placeholder is yielded to the agent. When the watcher finishes, the result is pushed back to the session’s inbox plus a wakeup, so the next run picks it up.StateChangeMiddleware— emitsCustomEvents when the agent state changes (e.g.,tasks_context,permission_context) so the frontend can react without reading raw state snapshots.
extra_agent_middlewares factory to create_app. The factory runs once per agent assembly and its middlewares are appended to the framework-supplied ones.
Dependencies
Routers receive application state through FastAPI’sDepends(). The standard injectables (in agentscope.app.deps) are:
| Dependency | Returns |
|---|---|
get_current_user_id | The caller’s user id — overridable to integrate any auth system. |
get_storage | The StorageBase instance bound to the app. |
get_message_bus | The MessageBus instance bound to the app. |
get_workspace_manager | The lifespan-bound WorkspaceManager. |
get_background_task_manager | The lifespan-bound BackgroundTaskManager. |
get_scheduler_manager | The lifespan-bound SchedulerManager. |
get_chat_service | The lifespan-bound ChatService. |
